Autel MaxiSYS IA1000LDWT ADAS Calibration System with LDW Targets

Part Number: IA1000LDWT

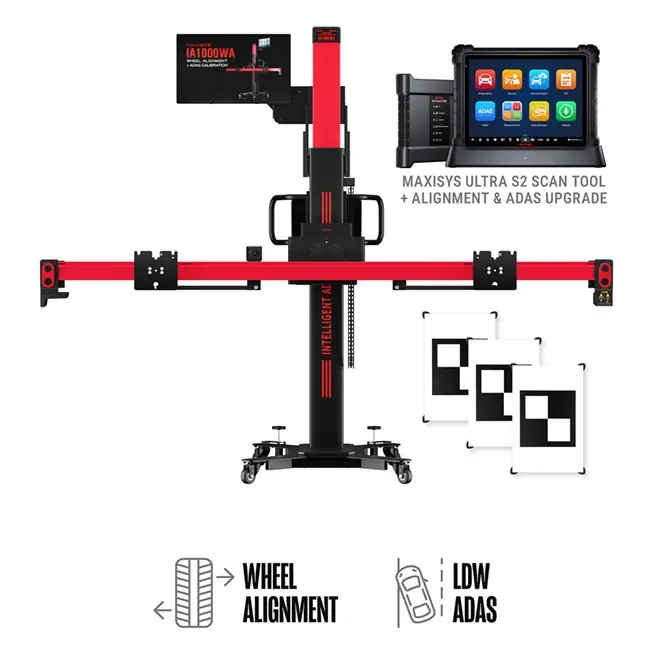

The Autel IA1000LDWT is a specialized ADAS calibration system designed to support Lane Departure Warning (LDW) calibrations using physical targets. This package includes the IA1000 robotic calibration frame, the advanced Ultra S2 diagnostic tablet, and all required activation credentials. It is ideal for shops focusing on LDW and basic ADAS procedures, offering exceptional target alignment accuracy and OEM compliance without digital displays. Wheel alignment functionality is supported when combined with the appropriate software activation and accessories.

Key Features

Robotic 5-axis calibration frame for pitch, roll, yaw, height, and width adjustment

Supports LDW, BSD, ACC, AVM, and NVS calibrations using physical targets

Ultra S2 diagnostic tablet with Topology 3.0 included

Laser-guided pattern positioning ensures accurate target alignment

Pre- and post-scan reporting with OEM-sourced calibration procedures

OTA software and target updates for long-term service support

Included Components

IA1000 Robotic Calibration Frame

Ultra S2 Diagnostic Tablet

IA1000 Activation Card

LDW Physical Targets

Accessory Kit (mounting hardware and alignment aids)

Warranty Information

This system includes a 1-year limited warranty on the calibration frame and tablet hardware. Target components and accessories follow Autel’s standard terms for electronic and mechanical coverage.

Specifications

Model: AUTEL-CSC1000

Power Supply: 100–264 V, 50/60 Hz

Rated Power: 360 W

Calibration Frame Height: 65.75–109.06 in.

Crossbar Length: 106.30 in. unfolded

Crossbar Height Range: 11.18–98.43 in.

Camera Resolution: 3072 × 2048

Operating Temperature: 14–122 °F

Storage Temperature: -4–140 °F

Compatible Tablet: MaxiSYS Ultra Tablet Series
