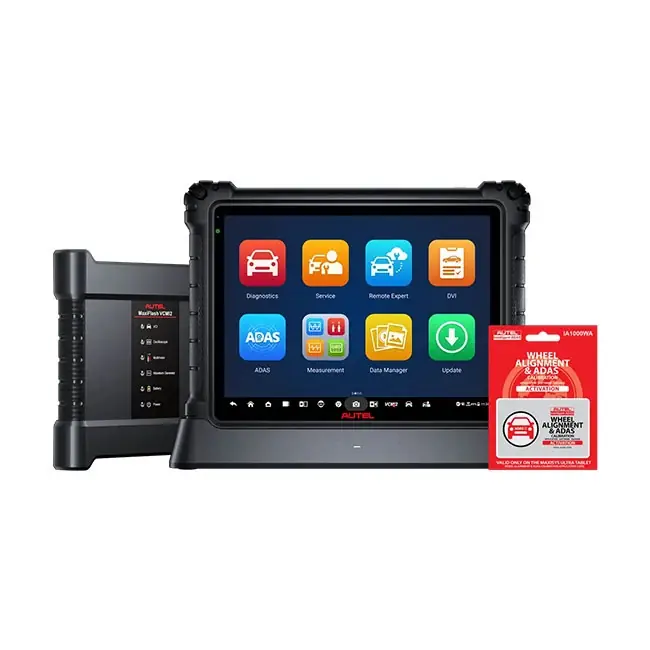

Autel MaxiSYS Ultra S2 Diagnostic Tablet with IA1000 ADAS & Alignment Software Latest

Autel MaxiSYS Ultra S2 Diagnostic Tablet with IA1000 ADAS & Alignment Software

Part Number: S2ADAS1000

The Autel MaxiSYS Ultra S2 is a 13.7-inch Android-based touchscreen diagnostic tablet that includes the IA1000 ADAS calibration and 4-wheel alignment software. Designed for 1996+ U.S., Asian, and European vehicles, it supports advanced diagnostics including coding, adaptations, active tests, and special functions. The included VCMI2 functions as a 6-in-1 measurement device, enabling J2534 programming, 4-channel oscilloscope usage, and remote expert sessions.

Additional key features include Topology 3.0 for real-time ECU communication mapping, enhanced Live Data graphing with PID Fusion, EV component testing, and AI-powered digital visual inspections with dent/scratch recognition. The Ultra S2 also supports hands-free voice commands with MAX, and includes fast charging via dock, 512GB of internal storage, and 12GB RAM. One-year MOTOR TruSpeed repair data access, software updates, and warranty are included.

Specifications

13.7″ Anti-glare touchscreen (2176 x 1600 resolution)

Android 13 OS with QCS6490 2.7 GHz Octa-core processor

512 GB storage, 12 GB RAM

Includes IA1000 ADAS & alignment software (targets sold separately)

Topology 3.0 ECU network mapping & module pinging

Live Data Fusion with PID graphing, grouping, and reference sampling

MaxiFlash VCMI2: 4-channel oscilloscope, multimeter, waveform generator, CAN tester, J2534 pass-thru

EV diagnostic support: AC/DC charging, HV components, interlock, thermal mgmt, etc.

AI-powered DVI with auto dent/scratch detection

Voice assistant “MAX” for hands-free operation

Dual 16MP front and rear cameras

Dual Wi-Fi 6, Bluetooth, USB 2.0, USB-C, HDMI 2.0, SD slot

18000mAh lithium-polymer battery with fast-charge dock

Startup time: 18 seconds

Security Gateway Access: Stellantis, Nissan, Mercedes-Benz, VW/Audi

Supported Protocols: DoIP, CAN FD, J2534, D-PDU

Includes 1-Year Free MOTOR TruSpeed Data, Software Updates, and Warranty
