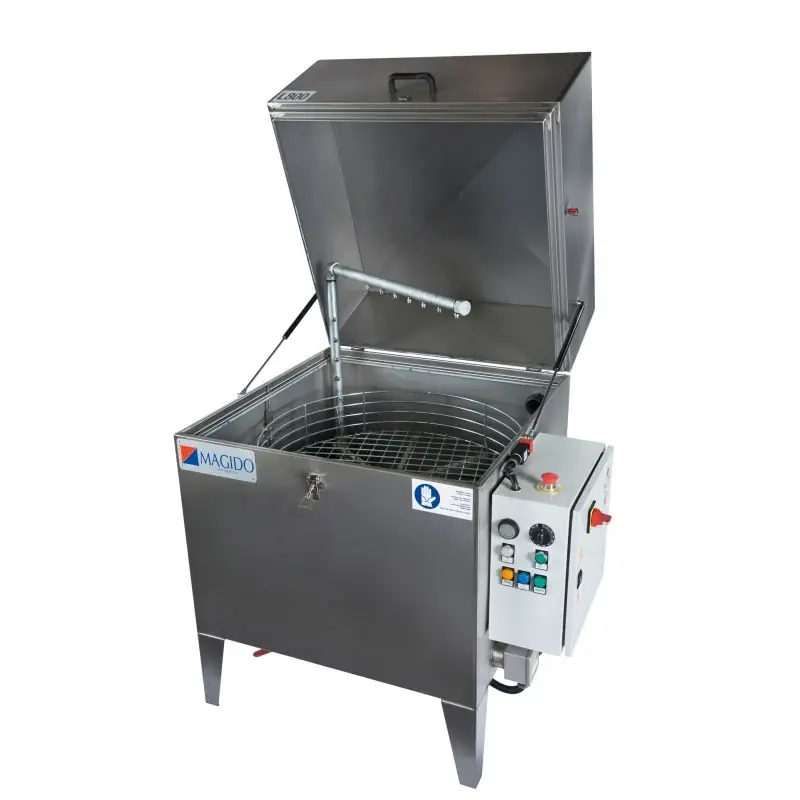

Direct From Factory MAGIDO L-800FP Industrial Jet-Spray Top Loader Parts Washer

MAGIDO L-800FP Industrial Jet-Spray Top Loader Parts Washer

THESE ARE BUILD TO ORDER 14-16 WEEKS TO SHIP

MODEL: L-800FP

Introducing the MAGIDO L-800 Industrial Jet-Spray Top Loader Parts Washer, a state-of-the-art solution for industrial cleaning demands. This robust machine is designed for superior spray washing performance using aqueous detergents at temperatures up to 160°F. Crafted with premium AISI 304 stainless steel, the L-800 model embodies durability and is built for wash treatments with ease and efficiency.

Key Design Features of the L-800FP:

Turntable with Containment Ring: A generous 31-inch diameter turntable includes a containment ring to secure parts during the washing cycle.

Optimized Working Height: Standing at a working height of 19.5 inches, it allows for comfortable loading and unloading.

Spray Manifold: Constructed from zinc/galvanized material, featuring 1 spray manifold for targeted cleaning.

High-Performance Wash Nozzles: 15 optimized nozzles ensure thorough and efficient part cleaning.

Hefty Load Capacity: Capable of supporting up to 350 lbs, accommodating a variety of part sizes.

Generous Tank Capacity: A 22-gallon tank provides ample space for a substantial volume of cleaning solution.

Powerful Pump: The L-800 includes a ¾-HP Lowara/Centrifugal pump, delivering a flow rate of 21 GPM at 33 PSI.

Efficient Heating: A 4kW heater reaches maximum operating temperatures of 160°F, for optimal cleaning results.

Convenient Cycle Timer: Adjustable from 0 to 60 minutes, allowing for precise control over cleaning durations.

Technical Specifications:

Electrical Requirements:

Voltage: 230/460 volts to suit various facility needs.

Phase: Available in single or three-phase configurations.

Dimensions and Weight:

Length (Lid Open): 45.5 inches

Width: 45.5 inches

Height (Lid Open): 69 inches

Dry Weight: 176 lbs, ensuring stability and ease of placement.

Embrace the L-800’s seamless integration into your workflow, enhancing the efficiency and effectiveness of your parts cleaning processes. The MAGIDO L-800 is not just an addition to your facility; it’s an upgrade to your productivity and a testament to your commitment to quality.

Standard Features

304 Stainless Steel Cabinet

304 Stainless Steel Centrifugal Pump

Incoloy Heating Elements

Magnetic Float Fluid Level Sensor

Strut Actuated Lid with Lock

Door Safety Switch

Zink/Galvanized Spray Bar

Stainless Steel Vee-Jet Wash Nozzles

Zink Galvanized Turntable with

Containment Ring

Jet-Spray Powered Turntable

Removable Debris Screen

Tank Drain

Included

Automatic Turntable Sprocket Drive

Oil Skimmer (stainless steel disc)

Available Parts Washer Options (Not Included Sold Seperately)

Automatic Turntable Drive

Stainless Steel Turntable & Spray Bars

Manual Flow-Thru Pump & Brush

Automatic Water Fill

Thermal Insulation

Oil Skimmer

27/7 Programmable Tank Heat Controller

Steam Exhaust Fan

120V (L-800 Only)

Specification:

Working Envelope:

Turntable Diameter: 31 inches

Working Height: 19.5 inches

Load Weight Capacity: 350 lbs

Wash Tank:

Fluid Capacity: 22.5 gallons

Pump Material: Stainless Steel

Pump Power: 1 HP

Pressure: 33 PSI

Flow Rate: 20 GPM

Heater: 4kW

Drain Size: 1.5 inch BSP

Power Requirements:

Voltage: 220V, available in single or three-phase

Control Voltage: 24V/AC

Overall Machine Footprint:

Length (Lid Open): 45.5 inches

Width: 45.5 inches

Height (Lid Open): 69 inches

Dry Weight: 175 lbs
