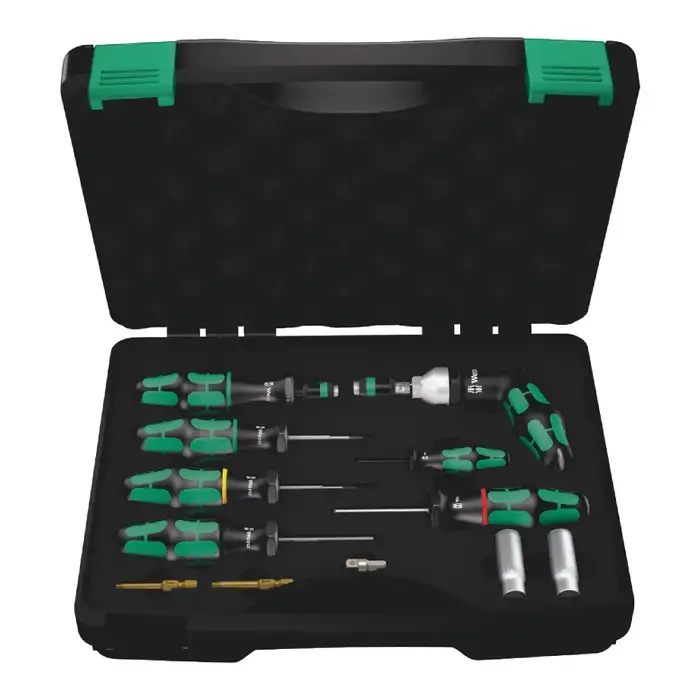

Markdown WERA 05074746001 12 No. of Pieces in Set Mechanical Set

Features

• 12-piece tool set for the proper assembly and disassembly of tire pressure control systems.
• Comes with torque technology for controlled screw tightening.
• Hand tool with multi-component Kraftform handle for high working speeds and ergonomic working.
• Five pre-set tools to connect the union nut with the screw and to fasten the sensor component to the valve.
• Two pre-set valve insertion tools with 0.25 and 0.45 Nm.
• An adjustable Kraftform pistol handle for torque values of between 4.0 and 8.8 Nm.
• Suitable for all customary tire pressure control systems.
• Dependable fastening thanks to distinctly coloured marking of the pre-set torque values (Beru/Huf®: TX 10 yellow 1.25 Nm; Schrader®: TX 10 green 1.4 Nm; Cup®/RTS®: TX 20 grey 2.0 Nm).
• Two TX bits with holding function, socket adaptor, two sockets plus a valve dolly (for applications up to 4.5 Nm).
• Suitable for tire control, systems from e.g. Schrader®, Alligator®, VDO®.
• The pre-set torque screwdriver fixed at 3.3 Nm actuates both the union nut as well as the connecting screw on the sensors of the Alligator system.
• Additionally included: socket adaptor, two bits, valve dolly (for applications up to 4.5 Nm).
• Measurement accuracy is ± 6 % (article 1430: ± 10%) in accordance with the standard DIN EN ISO 6789.
• Distinctly audible and noticeable excess-load signal when the pre-set torque is reached.

Includes

• (1) Series 7400 Kraftform Pistol Grip, Adjustable Torque Screwdrivers (3.0-8.8 Nm) With Rapidaptor Quick-Release Chuck, art. no. 7443 x 4.0-8.8 N m
• (1) Serie 7400 Kraftform Pre-Set Adjustable Torque Screwdrivers (0.1-3.0 Nm) With Rapidaptor Quick-Release Chuck, art. no. 7464 x 3.3 N m
• (2) 300 TX TORX® Torque-indicator: TX 10×1.25, TX 10×1.4
• (2) 790 A/50 Nut Spinner Socket: 11.0×50.0, 12.0×50.0
• (2) 867/4 TORX® HF Bits With Holding Function: TX 15×50, TX 20×50
• (1) 870/1 Adaptor, 1/4″ x 25 mm
• (2) 300 V Valve Holder: 0.25, 0.45
• (1) 327 Valve Holder, 32 mm
