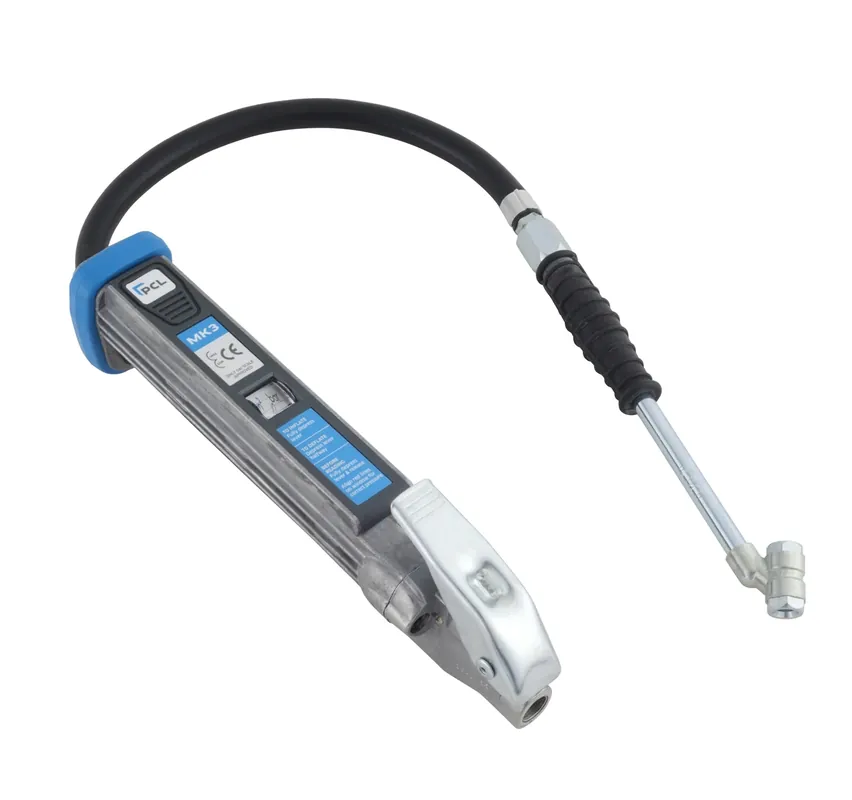

PCL AFG5A09 Truck Tire Inflator, 21″ Hose Twin Angled Chuck Secure Checkout

PCL AFG5A09 Truck Tire Inflator, 21″ Hose Twin Angled Chuck

Part Number: AFG5A09

New Viewing Window– Larger window gives 20% greater field of viewing

Lighter Weight– Gauge body weighs 923g, less work strain and easier for repetitive use

Biomorphic Shape– Ergonomic, easier to use and less prone to damage when dropped

New Valve Mechanism– Simplified 2 stage mechanism design prevents user having to “push” against full line pressure on deflate preventing fatigue

New Piston & Seal Design– New design, less drag, reduced friction & less movement inertia means no internal corrosion, no sticking and no skewing of accuracy

Accuracy Standards– Tested to over 400,000 cycles at 100% accuracy, meets EC 86/217 and compliant with EN12645:2014

The new AIRFORCE® MK4 Tire Inflator is as robust as ever and highly accurate, offering leading inflation and deflation rates and high performance for both indoor and outdoor applications. Meanwhile the redesigned piston and seal arrangement means increased accuracy – cycle tests now give over 400,000 inflation cycles at 100% accuracy – over 50% more than previously!

By increasing the size of the viewing window to give a 20% larger field of view, and altering the graphic print to give a clearer scale reading the new gauge is even more user friendly.

With a new, modern slim line body design the gauge is now lighter yet more ergonomic to give increased comfort in use.

The “Made in Sheffield” AIRFORCE® MK4 Tire Inflator is still available with the same wide choice of tire valve connectors and hose lengths to suit all tire inflation applications.

Specifications

Accuracy:Exceeds EC Directive 86/217

Reading Accuracy:2 psi

Max Inlet Pressure:232 psi

Inflation Flow:18 cfm @ 190 psi supply

Hose Length:21″

Chuck Type:Twin Angled

Calibration:0 to 174 psi in 2 psi units

Operating Temperature:14°F to 140°F (-10°C to 60°C)

Storage Temperature:-22°F to 176°F (-30°C to 80°C)

100% Tested to 2 psi Standard

Compliance:EC Directive 86/217 and BS EN 12645:1999

Length:10.4″

Width:1.9″

Weight:1.34 lbs
