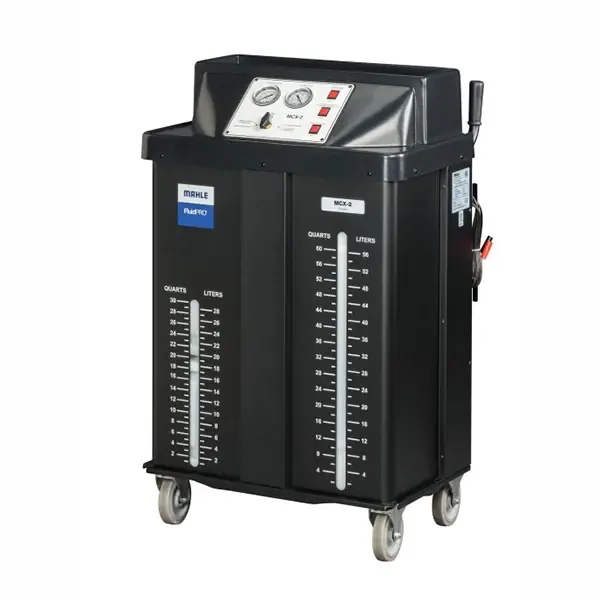

Mahle MCX-2HD – MCX-2 with HD Truck Adapter Set, 15 gallon tanks

MODEL MCX-2HD

Part Number: 470 80032 00

MCX-2HD Multi-Coolant Exchanger has all MCX-2 features plus larger capacity fill tanks and larger step adapters.

Compatible with all coolant types

Automatic pump shut-off

Easy disconnect drip-proof tank connectors

Fast service times of 3 minutes

Visible fluid level indicators

Easy-to-read gauges

12V power supply clips

Specifications

Adapters Step Adapters Universal; 2 sets; 1-1/4 in to 1-3/4 in range (3.2 cm to 4.4 cm) diameter (MCX-2HD contains additional step adapters) / Hose Adapters: Universal; 2 hoses, 1-1/4 in to 1-3/8 in (3.2 cm to 3.5 cm) and 1-1/2 in to 1-3/4 in. (3.8 cm to 4.4 cm) diameter (MCX-2HD contains additional adapter hoses)

Coolant Exchange 92 to 98% single pass, average exchange for most vehicles

Dimensions (H x W x D) 45 in x 38 in x 22.5 in (114 cm x 97 cm x 57 cm)

Fluid Tanks / Types Contains two 7.5 gal new coolant tanks; integrated output tube w/ debris filter screen and check valve; MCX-2HD contains two 15 gal (57 liter) new coolant tanks and one 15 gal waste coolant tank; integrated input/output tube; w/ automatic empty fluid level sensor

Hoses 3/8 in (9.5 mm); quick connect/disconnect (brass; chrome sleeve; silicone sealed) Operating Range 32° to 122°F (0° to 50°C)

Power Source 12 VDC – 15 Amp

Pressure Switch 6 to 12 psi (0.4 to 0.8 bar); protects vehicle cooling systems from high pressure

Process Time Less than 3 minutes average full exchange

Pumps 2 gal. (7.9 liter) per minute Fill: Diaphragm Type / Drain: Impeller Type

Warranty 1 Year– & labor

Weight 170 lb. (77 kg)
