TSI / Amermac A3 – 6364K Truer Adapter Kit, 6 Lug-Metric Weekend Sale

TSI / Amermac A3 – 6364K Truer Adapter Kit, 6 Lug-Metric

PART NO: 6364K

This Bolt Centric Adapter Kit, model A3, is designed for use with various 6-lug vehicles. The kit comes with 1/2-20 UNF threads and includes a total of 5 pieces. The truing type is Bolt Centric and the bolt pattern unit is Metric.

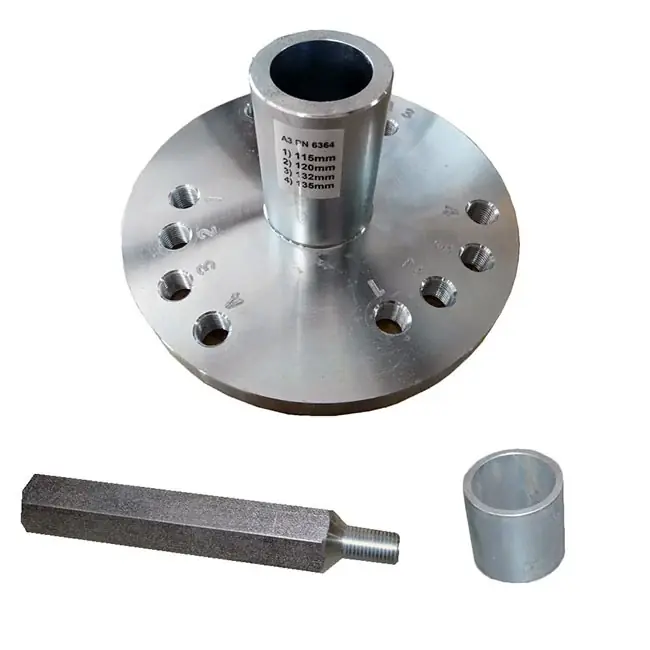

The kit includes one 6364 adapter, one 15440 spacer, and three 15334 hex studs 4.5 inches in length. The kit is compatible with 711 and 1200R tire truer machines and is included in the TSI-6400 Adapter kit.

The bolt circle pattern for this adapter kit includes three options: 115mm, 120mm, and 135mm.

The reference numbers for the kit are A3, 6364, 6364K (kit version), 15440 (spacer), and 15334 (stud).

For more information, you can refer to the Bolt Centric Adapter Chart and Bolt Centric Adapter Instruction, which are available as PDF files below.

Specifications

Truing Type: Bolt Centric

Adapter Model: A3

Lug Type: 6 Lug

Bolt Pattern Unit: Metric

Threads: 1/2-20 UNF

Qty: Kit (5pc)

Bolt Circle Pattern:

1:3 – 115mm

2:3 – 120mm

3:3 – 132mm

4:3 – 135mm

Ref No.:

A3

6364

6364K (Kit Version)

15440 (Spacer)

15334 (Stud)

6400 (included in this kit)

Fit Truer Machine:

711

1200R

Includes:

1 x 6364 Adapter

1 x 15440 Spacer

3 x 15334 Hex Studs 4.5in

Weight 8 lbs
Dimensions 6 × 6 × 6 in
