Zeeline by Milton ZE1730K-IBC-300 – 5 1 Eco Series Pump Kit IBC With Hose and Preset Meter Super Sale

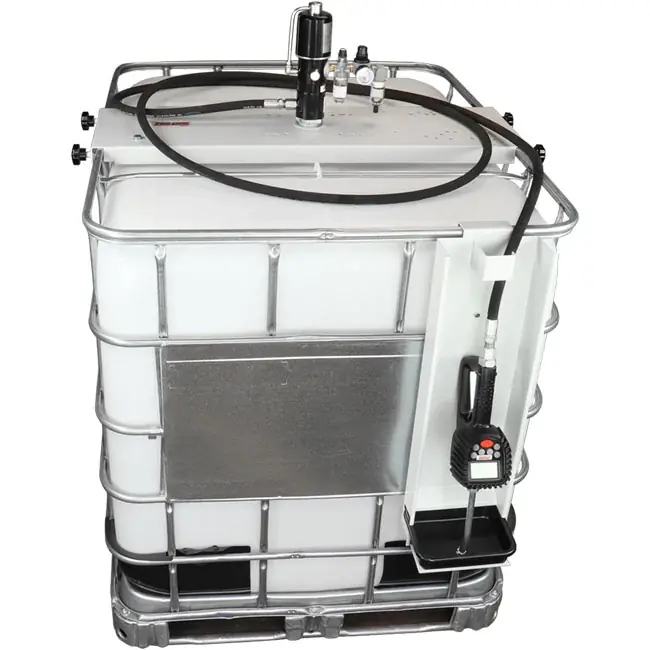

ZE1730K-IBC-300 – 5:1 Eco Series Pump Kit IBC With Hose and Preset Meter

Model: ZE1730K-IBC-300

This 5:1 Pump Package was built with professionals in mind and was designed to be used with low, medium, and high viscous oils such as motor oil, transmission fluid, hydraulic oil, and more! This Pump package includes, a 16-foot hose, 5:1 Pneumatic Pump, Preset Digital Control Valve, 2-Port Tote mounting Plate, Drip Tray, Suction Tube, Foot Valve, and FRL.

This package will work with 275-Gallon IBC Totes.(Not Included)

Application:
The ZE1730K-IBC-300 is a professional-grade pump kit optimized for accurate and efficient fluid handling. Its robust pump, preset digital meter, and high-quality components make it a reliable choice for workshops, service centers, and industrial applications requiring fluid transfer from 275-gallon IBC totes. Note: Totes are not included.

Includes:

ZE1730K 3:1 Pump

ZE0008Hose Reel

ZE2510Digital Oil Control Valve

Features:

Heavy-Duty Pump: 5:1 ratio oil transfer pump for medium to high viscosity fluids for short to medium distance applications.

High Flow Rate: 3.2 GPM (12 LPM) flow rate allows for quick and efficient dispensing of fluids.

Variety of Fluid Types: Can be used with SAE 130 oils and fluids that include motor oil, gear oil, hydraulic oil, synthetic hydraulic oil, and transmission fluid.

Precise Oil Measurement: Accuracy rating of +/- 0.5% with a clear view LCD

Built to Deliver: The 16- foot x ½ in. diameter hose has a maximum pressure of 2320 PSI which allows for maximum delivery of petroleum and water based hydraulic fluids.

Specifications

Pump Ratio: 5:1 (Eco Series Pneumatic Oil Transfer Pump)

Flow Rate: 3.2 GPM (12 LPM)

Delivery Rate: 1-10 GPM

Maximum Working Pressure: 1000 PSI

Accuracy: ±0.5%

Hose Dimensions: 16 ft. x 1/2 In. diameter

Hose Maximum Pressure: 2320 PSI

Compatible Fluids:

SAE 130 oils

Motor oil

Gear oil

Hydraulic oil

Synthetic hydraulic oil

Transmission fluid

Fluid Types: Petroleum and water-based hydraulic fluids

Container Compatibility: 275-gallon IBC totes

Components Included:

Pump: ZE1730K 5:1 Pneumatic Pump

Hose: 16 ft. x 1/2 In. diameter

Preset Digital Control Valve: Provides accurate and controlled fluid dispensing with user-defined presets

Mounting Plate: 2-port tote mounting plate for secure setup

Drip Tray: Ensures a cleaner operation by reducing spills

Suction Tube

Foot Valve

FRL (Filter, Regulator, Lubricator)
